Unique Aluminum Track design Excellent Quality High-performance Automatic Sliding Door

Features:
1. The worm motor design, the trend of the world
2. The shape is advanced, quiet, long life, high stability
3. The collocation of various standards of automatic door safety device: such as door security detect, prevent clip..., etc.
4. The large range of voltage stabilizing system, the input voltage 80 v ~ 250 v is general
5. All series collocation cog-type belt, solid, durable, high stability
6. CE certification

An intelligent worm sliding door (single/double opening)

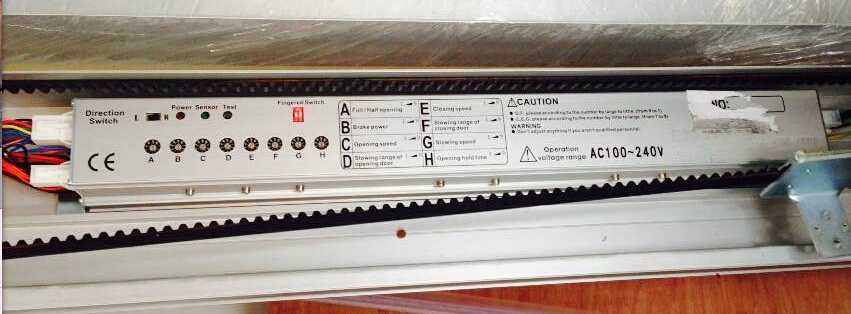

An intelligent microcomputer controller

1. Can be directly connected infrared, electric lock, UPS, many mutual control..And so on, related peripheral equipment, construction is convenient.
2. The large range of voltage stabilizing system, affordable AC80V ~ AC250V plus or minus 10% of the power input.
3. When they run into any obstacles or the human body, can immediately reverse, a substantial increase in users in and out of safety.
4. Add signal amplification device, make the door machine and matching, access control, attendance, and fire systems are more stable and safe.
5. The AD hoc fully open, half open (adjustable) function, can adapt to different regions and different places of different switch range of traffic requirement, provide human nature to change more.
6. A power factor correction function, reduce unnecessary energy waste, vision for the user, when choosing automatic device, generally does not consider power drain

The controller signal connection

Worm brushless dc motors

1. Internal control provide acoustic closed design, the motor running quiet, no noise.
2. Advanced worm motor design, make the motor can carry heavier, more stable operation.
3. The reducer adopts stainless steel iron, resistant to long-term continuous high speed running state, the test can reach more than one million times.
4. The drag reduction of driving wheel is designed, in the case of power failure, only 3 kg force can be manually opened, the elderly, women and children all can do it,
To achieve the security of the automatic door situations.

The main performance specification table

1. Model CA-3000 worm sliding door (single/double)
2. Type one-way horizontal open and two-way open
3. Door leaf weight 200 kg X 1 , 150 kg X 2 fan
4. DW door leaf width = 500 mm to 2500 mm per fan DW = 500 mm to 2500 mm per fan
5. According to the loading way according to the loading surface under the surface
6. Brushless DC motor DC 24 v, 75 w Worm motor
7. The controller of intelligent microcomputer processing controller
8. Power consumption 75 W
9. AC power supply voltage 80 v to 250 v
10. Ambient temperature - 20 ℃ ~ + 50 ℃
11. Most noise 60 decibels
12. Open speed 600 mm/SEC 550 mm/SEC
13. Open the stop time can be adjusted to 20 seconds with 0.5 seconds left
14. The transmission elements 150 S8M toothed belt
15. Open the door by full/half open Can adjust the distance
16. External numerical control mode L - 138 special regulator
17. Push open power 3 kg

Shenzhen Hui Trade Industry Co., Ltd was established in the 1990 s, nearly 20 years in the automatic door control and related products field continuously explore. To products responsible for, is responsible for the customer for the development of the enterprise the premise, and with the overwhelming majority of the automatic door users provide safe, stable, with the highest cost-effective automation product categories for development goals.
In the growth process, successively in mainland area to the user with Chris dodd and, open he is cut off, the brand such as China's total operation by the service, with the efficient, earnest, practical work for many of the same industry partners consistent approval. Now, the improved "CATERLY" automatic door unit to a lower price, consummate craft, fully functional advantages and the solid price for all the distributors love.
In 2007, in response to the changing market demand, home to more than HuiTrade joint development institutions, successfully develop T8-100 door machine translation, and 2008 years into production, so as to realize the transformation from the trade for production, trade, sales for the integration of diversified management, as the few independent research and development of one of the enterprise completely... In various special door, it has the very strong overweight door industry advantage. Products have been exported to Vietnam and southeast Asia as well as Hong Kong CATERLY "series products already has won the ISO9001:2000 international standard authentication, and Pass CE certification .
Through the understanding of the Hui Trade to you, you will find that the choice of different channels more automation, unique solutions and the company always insists on the principle of the supremacy of the customer will let our pleasant cooperation, and in the automation channel field high-speed growth. Sincerely welcome vistit our factory to guidance, negotiations.
We,Shenzhen Hui Trade Industry Co.,Ltd do our best to satisfied you.
