Specifications:
Type | Single-Winged | Bi-parting |
|
Model | H-8 | H-8S |
|
Door Weight | 500kgX1(door) | 400kgx2(door) |
|
Door Width | DW=500mm to 6000mm | DW=500mm to 6000mm |
|
Installation | Surface Install | Surface Install |
|
Motor | DC24V Brushless DC Motor | DC24V Brushless DC Motor |
|
Controller | The Micro-controller | The Micro-controller |
|
Power Consumption | 120W | 120W |
|
Voltage | AC80 to 250V (Regulate) | AC80 to 250V (Regulate) |
|
Environmental Temperate | -20’c to +50’c | -20’c to +50’c |
|
Volume | 60decibel(max) | 60decibel(max) |
|
Starting Speed | 500mm/second | 410mm/second |
|
Starting Times | Regulate from 0.5 second to 20 second | Regulate from 0.5 second to 20 second |
|
Transmission | Rack belt 150 S8M | Rack belt 150 S8M |
|
Open door range : Full-open /Half-open(The distance can be
regulated) | Full-open /Half-open(The distance can
be regulated) |
PFC Power efficiency : 0.95 (AC100 Full load) | 0.95 (AC100 Full load) |
|
|
Description:
1, Microcomputer intelligent control system : Control hub of the automatic door. Using the built-in
micro-computer chips, the sensor detects signal automatically
adjust and sets the control process according to detection of the
size of door leafs and weight.
2, Power plant : Brushless DC motor made with imported technology, with advantages
of long service life, large pulling force and low noise. It has
self-locking function, close powerfully and increase security.
3, Universal adjustable hanger : Adopt adjustable structure, the hanger is stamped out with cold
rolled steel plate, and DACROMET technology is adopted in surface
treatment. There are guide wheels made with special material, which
are fixed on the hanger move along with the arc orbit on the
dynamic beam.
4, Belt and tension wheel parts: Constant tension belt and tension wheel parts are used to adjust
tension of the belt. The constant adjustment device of the belt
keep the timing belt with constant tension.
5, Belt parts : Adopt timing belt with high transmission efficiency, reciprocating
motion is driven by a special motor, linked with hanger and drive
the door leaf to move.
6, Dynamic beam: Novel structure, formed by high strength plated aluminum alloy
with one-time extrusion, rugged construction with big loading, the
surface is adopted electrophoresis processing, with bright and
clean appearance.
7, The machine for 800KG heavy planetary gear motor shipped preach
the door machine, almost all the current comprehensive have sold
all of the functions of the model, the door to often open, remote
lock, remote control all the half open ,remote control forced open
the door. The motor and the power switch fission design, sling 100%
a motor .
8, The international first-class adjustment worm gear and worm
drive, super start, large torque.
9, The sound internal control equipped with design, the motor
running quiet noise.
10, The reducer is made by best steel instead of industrial plastic
or pig iron, the host possesses durability under long uninterrupted
running state.
11, Managers can realize the automatic door five functions
conveniently: lock, keep opening, single direction entrance, half
open, automatic operation.
12, Emergency opening in case of power failure / Fail-safe
13,The safety beam photocell will keep the door open to offer
security for the passers-by.
14, In an emergency, press the abrupt stop switch, the door will
stop immediately, security is fully guaranteed.
.
15, The door will open automatically when fire happens, it helps to
win time for escape
16, Electro-mechanical Locking
Glass Clamping Rail
Light barriers
Battery pack (emergency opening, emergency closing)
17, Permanent open/ partial open/ lock/ exit or entry only/ auto 5
operation functions carried out by remote transmitter or 5 position
key switch .
18, Digital display screen, button debugging, convenient for
setting the right parameter
19, Each CATERLY KIT automation for sliding doors contains all the
safety devices to let your automation be in compliance with the
latest European Safety Standard .
Applications:
Business Organizations | supermarket, large-scale shopping malls, exclusive agency, chain
shops, large-scale sales, star-rated hotels, restaurants, travel
agencies, pharmacy. |
Financial Organizations | Banks, negotiable securities, funds, insurance companies,
pawnshops.

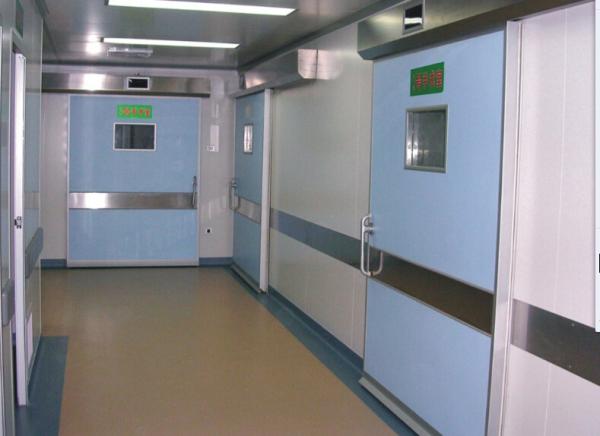

Non-profit Organizations: Telecommunications, post offices,
hospital, schools. |
Public Places | subway, airports, stations, bookstores, exhibition halls, museums,
convention centers, lottery centers; Real Estate Property:
Apartments, villas, offices, commercial buildings, model rooms. |
Entertainments | Movie theaters, fitness halls, country clubs, clubs, massage rooms,
bars, cafes, Internet bars, beauty shops. |
Competitive Advantage:
1, Wide voltage (AC80-250V)low power consumption when at work,
energy saving when at leisure .
2, Intelligent design, easy to install and adjust .
3, Digital programs, running parameters can be revised easily.
4, Specially designed noise-reduction track rail produces noise
greatly,ensure the rollers run smoothly .
5, Advanced brushless DC motor and the worm-reduction gear are
integrated together .which has advantages such as higher
efficiency, large torque and longer life span ,no need for
mechanical lock .
6, Different triggering modes are available, such as fire warning,
safety beam sensor, handle button, etc.
7, 1 millions times of tests passed.
8, CE,SGS,IS09000,CQC
9, Super quite, safe.
