Brand Name : | CATERLY |
Model Number : | H-8 |
Certification : | CE,ISO9001,SGS,CQC |
Price : | USD1370/Set to USD3225/Set |
Payment Terms : | T/T, Western Union, L/C |
Supply Ability : | 1000Set per month |
Delivery Time : | 3-15 work days |
Packaging Detail: | Carton or wooden packing or as per customer's request. |
Delivery Detail: | 5-7 days after receiving customers' payment |
Feature and Advantages
-- Powerful driving, great funtion
-- widen passage height and width
-- More flexible and user-friendly for design
-- Various options of material meeting different requirments
-- Dream in spectacular visual effect, make it different

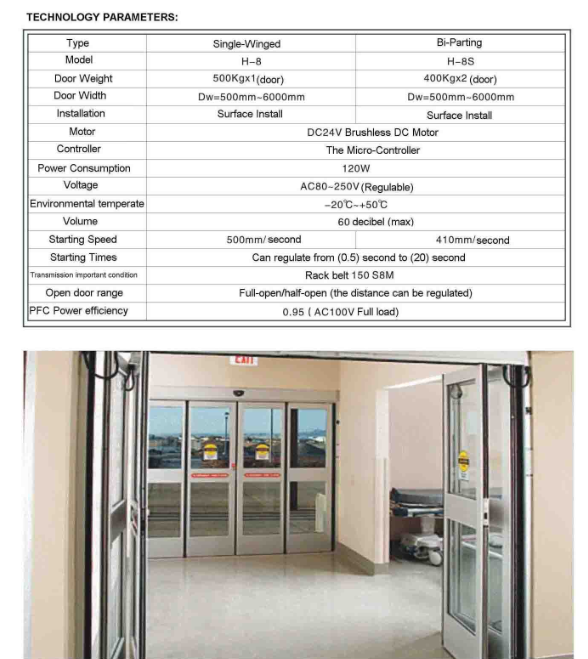

Technical Parameter
Door parameters | H-8 |
Sigle-leaf sliding door | |
-Clear passage width LW -Door leaf weight,Max | 500-6000mm 1x500kg |
Double-leaf sliding door | |
-Clear passage width LW -Door leaf weight,Max | 500-6000mm 2x400kg |
Technical data | |
Height | 110mm |
Structural depth | 180mm |
Ajustable opening& closing force,max | 220N |
Driving device | Stainless steel motor |
Ajustable opening speed | 30-80cm/s |
Ajustable closing speed | 80cm/s |
Ajustable pausing time | 0-10sec. |
Power suply data | 60Hz |
Power consumption | 120W |
Control unit
Micro-controller Function programs | |||
- Automatic | |||
- Permanent open | |||
- Partial opening | |||
- Exit only | |||
- Night-bank switch | |||
Emergency off | |||
Self-learning | |||
Automatic reversing | |||
Connection for bistable electr4o-mechanical locking | |||
Connecting for light barriers(max.2 pairs) | |||
Setting of basic parameters via intergrated display and push-buttons | |||
24V output for external consumption Read-out error store with error codes |
![]() |
