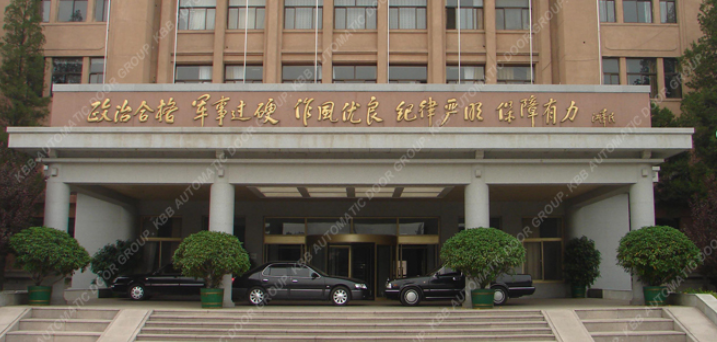

PLA Academy of Military Sciences, university, automatic revolving door, ISO9001 CE certificate

Safety functions:
1, Special Load-Bearing Structure

2, Vertical/horizontal safety switch
3, Anti-squeeze
4, Anti-strike
5, Force-sensitive Control
6, Torque Control
7, Panic breakout system

8, Handicap
9, Night Security Door.

Operation features:
1, Continuous working mode
2, Go/Stop working mode
3, Remote control function

Technical Data:
Power supply : 220VAC±10%,50HZ
Rated current :12VAC,50HZ
Rated power : 600W
Down lights : 400W
High speed adjustment range(revolving door) : 1-4r.p.m.
Low speed adjustment range(revolving door) : 0.5-1.5 r.p.m.
Ambient temperature : -30.C – 45.C.
Max relative humidity : 90%.
Total weight <1000Kg
Operating noise ≤ 60db (A)

Specifications:

Key Components:
1, Main control unit
2, Operation program software
3, Transducer
4, Drive unit
5, Gear box
6, Deceleration belt
7, Spot light
8, Detection radar
9, High precision speed/position radar
10, Emergency stop button
11, Handicap button
12, Curved glass
13, Planar glass
14, Aluminium frame profile

Shenzhen Hui Trade Industry Co., Ltd was established in the 1990 s, nearly 20 years in the automatic door control and related products field continuously explore. To products responsible for, is responsible for the customer for the development of the enterprise the premise, and with the overwhelming majority of the automatic door users provide safe, stable, with the highest cost-effective automation product categories for development goals.
In the growth process, successively in mainland area to the user with Chris dodd and, open he is cut off, the brand such as China's total operation by the service, with the efficient, earnest, practical work for many of the same industry partners consistent approval. Now, the improved "CATERLY" automatic door unit to a lower price, consummate craft, fully functional advantages and the solid price for all the distributors love.
In 2007, in response to the changing market demand, home to more than HuiTrade joint development institutions, successfully develop T8-100 door machine translation, and 2008 years into production, so as to realize the transformation from the trade for production, trade, sales for the integration of diversified management, as the few independent research and development of one of the enterprise completely... In various special door, it has the very strong overweight door industry advantage. Products have been exported to Vietnam and southeast Asia as well as Hong Kong CATERLY "series products already has won the ISO9001:2000 international standard authentication, and Pass CE certification .
Through the understanding of the Hui Trade to you, you will find that the choice of different channels more automation, unique solutions and the company always insists on the principle of the supremacy of the customer will let our pleasant cooperation, and in the automation channel field high-speed growth. Sincerely welcome vistit our factory to guidance, negotiations.
We,Shenzhen Hui Trade Industry Co.,Ltd do our best to satisfied you.
