Automatic door system
1. Arc-shaped sliding door
2. With brushless motor and motion sensor
3. Suitable for different door size

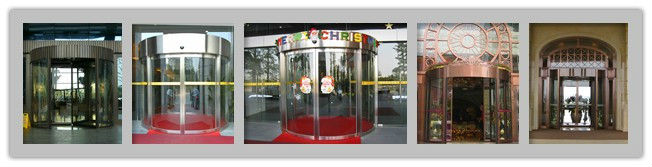

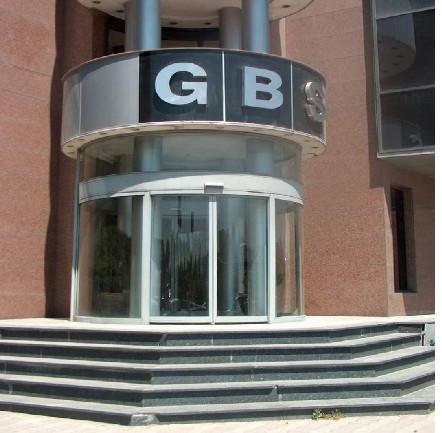

Automatic arc-shaped sliding door openers
Technical Parameter
Demensions | Technical data |
Clear passage width LW <2500mm | Door leaf weight(maximum). 100kg |
Clear passage height H <2100-2500mm | Opening speed per door leaf, adjustable 100-600mm/s |
Semi-circular radiusr, minimum. 1000m | Opening speed per door leaf, adjustable 100-655mm/s |
Segmental pitch radius rfreely selectable | Opening and closing force, adjustable |
Number of door leaves 1 or 2 | Maximum force on contact with an obstruction 150N |
Fixed side screens Optional | Power input, max. 360W |
Moving leaf(minimum) 240mm | Power supply data 220V/50-60HZ |
Overhead height of canopy(minmum). 240mm | External power supply 24V/2.5A |
Components
1.Minidrive Unit | 9.Carrier |
2.Transformer | 10.Return Pully |
3.Motor | 11.Service cover holder |
4.Decoder | 12.End stop |
5.Basic control module | 13.Door bracket |
6.Function Module | 14.Belt connection |
7.Track | 15.Belt tensioning device |
8.Battery Pack(optional) | 16.Glass clamping rail |
Function Programs
Off
Automatic
Permanent Open
Partial
Exit only
Safety Functions:
1. Safety sensors (self-monitoring holding beams) in the clear
opening of the door prevent the door from shutting if persons or
objects are in the detection zone.
2. Safety automatic reversing mechanism: if the door leaves are
inhibited when closing, they are immediately re-opened (automatic
reverse 2-step adjustable). If the door leaves are hindered when
opening, they are immediately stopped.
3. The position of the obstacle is stored and will be slowly
approached during the next door movement.
4. Even in the case of power failure, the emergency fail close or
the emergency opening is assured by the optional
![]() |
