Wide Voltage Silent Commercial Automatic Sliding Doors Drive Low Power Consumption

Competitive Advantage:

1, Wide voltage (AC80-250V)low power consumption when at work, energy saving when at leisure .
2, Intelligent design, easy to install and adjust .
3, Digital programs, running parameters can be revised easily.
4, Specially designed noise-reduction track rail produces noise greatly,ensure the rollers run smoothly .
5, Advanced brushless DC motor and the worm-reduction gear are integrated together .which has advantages such as higher efficiency, large torque and longer life span ,no need for mechanical lock .
6, Different triggering modes are available, such as fire warning, safety beam sensor, handle button, etc.
7, 1 millions times of tests passed.
8, CE,SGS,IS09000,CQC
9, Super quite, safe

Description:

1, Microcomputer intelligent control system : Control hub of the automatic door. Using the built-in micro-computer chips, the sensor detects signal automatically adjust and sets the control process according to detection of the size of door leafs and weight.
2, Power plant : Brushless DC motor made with imported technology, with advantages of long service life, large pulling force and low noise. It has self-locking function, close powerfully and increase security.
3, Universal adjustable hanger : Adopt adjustable structure, the hanger is stamped out with cold rolled steel plate, and DACROMET technology is adopted in surface treatment. There are guide wheels made with special material, which are fixed on the hanger move along with the arc orbit on the dynamic beam.
4, Belt and tension wheel parts: Constant tension belt and tension wheel parts are used to adjust tension of the belt. The constant adjustment device of the belt keep the timing belt with constant tension.
5, Belt parts : Adopt timing belt with high transmission efficiency, reciprocating motion is driven by a special motor, linked with hanger and drive the door leaf to move.
6, Dynamic beam: Novel structure, formed by high strength plated aluminum alloy with one-time extrusion, rugged construction with big loading, the surface is adopted electrophoresis processing, with bright and clean appearance.
7, Combined with the European design, installation is complete area is reduced, wide power work scope(AC 100 to 250V).
8, Low power consumption, energy-saving standby condition, the intelligent, easy installation, commissioning convenient program digital.
9, Operation parameters can be adjusted flexibly, operation, low noise, smooth roller walk .
10, Advanced brushless DC motor and worm gear and worm reducer integration synthesis, high efficiency, torque, long service life .
11, Can choose a variety of trigger open the door way, have double the interlock function.
12, The same time only allow open a door , the motor with automatic lock function, in no signal trigger circumstances .
13, Powerful closed force always keeps the door leafs of the automatic door in a locked state (under the charged state),maximum bearing 120KG*2(door leaf) of activities to move the door,1million times of test, low failure rate.
14,The safety beam photocell will keep the door open to offer security for the passers-by.

15, In an emergency, press the abrupt stop switch, the door will stop immediately, security is fully guaranteed.
.
16, The door will open automatically when fire happens, it helps to win time for escape

17, Electro-mechanical Locking
Glass Clamping Rail
Light barriers
Battery pack (emergency opening, emergency closing)

18, Permanent open/ partial open/ lock/ exit or entry only/ auto 5 operation functions carried out by remote transmitter or 5 position key switch .
19, Digital display screen, button debugging, convenient for setting the right parameter
20, Each CATERLY KIT automation for sliding doors contains all the safety devices to let your automation be in compliance with the latest European Safety Standard .

Specifications:

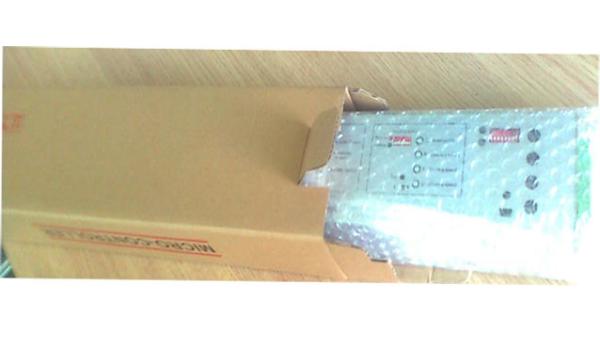

Product picture :

Shenzhen Hui Trade Industry Co., Ltd was established in the 1990 s, nearly 20 years in the automatic door control and related products field continuously explore. To products responsible for, is responsible for the customer for the development of the enterprise the premise, and with the overwhelming majority of the automatic door users provide safe, stable, with the highest cost-effective automation product categories for development goals.
In the growth process, successively in mainland area to the user with Chris dodd and, open he is cut off, the brand such as China's total operation by the service, with the efficient, earnest, practical work for many of the same industry partners consistent approval. Now, the improved "CATERLY" automatic door unit to a lower price, consummate craft, fully functional advantages and the solid price for all the distributors love.
In 2007, in response to the changing market demand, home to more than HuiTrade joint development institutions, successfully develop T8-100 door machine translation, and 2008 years into production, so as to realize the transformation from the trade for production, trade, sales for the integration of diversified management, as the few independent research and development of one of the enterprise completely... In various special door, it has the very strong overweight door industry advantage. Products have been exported to Vietnam and southeast Asia as well as Hong Kong CATERLY "series products already has won the ISO9001:2000 international standard authentication, and Pass CE certification .
Through the understanding of the Hui Trade to you, you will find that the choice of different channels more automation, unique solutions and the company always insists on the principle of the supremacy of the customer will let our pleasant cooperation, and in the automation channel field high-speed growth. Sincerely welcome vistit our factory to guidance, negotiations.
We,Shenzhen Hui Trade Industry Co.,Ltd do our best to satisfied you.
