Hanging European Design Commercial Automatic Sliding Doors With Door Frame

    Buy cheap Hanging European Design Commercial Automatic Sliding Doors With Door Frame from wholesalers

    Buy cheap Hanging European Design Commercial Automatic Sliding Doors With Door Frame from wholesalers
    • Buy cheap Hanging European Design Commercial Automatic Sliding Doors With Door Frame from wholesalers
    • Buy cheap Hanging European Design Commercial Automatic Sliding Doors With Door Frame from wholesalers

    Hanging European Design Commercial Automatic Sliding Doors With Door Frame

    Ask Lasest Price
    Brand Name : CATERLY
    Model Number : F-120W
    Certification : CE,SGS,ISO9001:2008 ,CQC
    Price : 250 usd to 350 usd
    Payment Terms : T/T, Western Union, L/C,paypal, MoneyGram
    Supply Ability : 1500 sets per month
    Delivery Time : 3 to 5 days after get payment
    • Product Details
    • Company Profile

    Hanging European Design Commercial Automatic Sliding Doors With Door Frame

    Hanging European Design Commercial Automatic Sliding Doors With Door Frame

    Intelligence

    1. Applying the PCL(Programmable Logic Controller microcomputer digital chips(RAM, ROM, CPU) to memory ,detect and modify the data of door working, receive and transit the data to whole parts of the electronic components in order to control the door's working.

    2. Equipped with the remote control system, this is can control the door open, close ,one-way open, normally open and lock more conveniently at 100m distance.

    Safety

    1. Solo interface for Safety beam sensor which can prevent from clipping of persons when they cross the door

    2. Coordinate with the safety beam sensor's working ,the door will move reversely when confront with obstacle and then move slow to detect the obstacle all the time .Finally it doesn't wok normally until the obstacle is removed.

    3. Power fails,
    1) when don't have the UPS( battery) ,the door will exchange to the manual model and can open the door by hand.
    2) when have the UPS, the door will exchange to the battery working model and door can open work through the battery's power

    4. When Fire emergency and power off, please confirm it is the normally open ,the door will keep open and aid escape

    5. Fuse protection at 3A ,250V

    6. Protection when working temperature is over setting value

    Specification

    Door modelSingleBi-Parting
    Door width700-1500mm650mm-1350mmn
    Door weight120kg120kg x 2
    Opening speed15cm-50cm/s15cm-45cm/s
    Closing speed10cm-45cm/s10cm-43cm/s
    Hold on time:0-9s
    Motor24V, 70W, Bruthless Motor, 50db with highest speed
    MicrocontrollerApplying PLC techniques ,digital microcomputer system, Digital screen
    Power supply80V-250V,60Hz/50Hz
    Track size4200m(L)x 150mm(H)x 110mm(W)
    FeatureAppearance of unique design

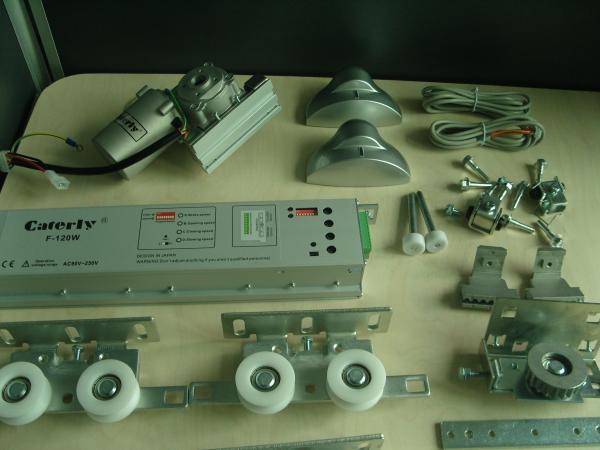

    Components

    (ONE)Control System
    1Motor1 pc24V,70W




    2Control unit1 pc8 bits chips
    3Radar1 pairmicrowave sensor
    4Remote control system1 set100m control
    (TWO)Mechanical Components
    1Track1 pcHigh strength, 4200mm thickness
    2Cover1 pc200mm height
    3Carriage wheel unit4 pcsGalvanized and adjustable
    4Belt clip2 pcs
    5Drive timing belt1 pcfiberglass tensile elments,nylon surface,7m
    6Reversed wheel1 pcsMatel,Galvanized
    7Stopper4 pcsGalvanized
    (THREE)Optional parts (Backup , BEA photocell, lock

    Contact Details
    Shen Zhen Hui Trade Industry Co., Ltd.

    Contact Person: Miss.

    Tel:86-755-2812-7422

    Fax:86-755-2812-7070



    Reliability

    1. Track's design is more scientific, firm , and thick to hold more weighted door leaf. European style design.
    2. Carriage with three unique plastic roller and anti-lift bracket to work more smoothly ,steady and long.
    3. With the help of advanced synchronous belt and perfectly metal idler roller , the door moves very stably

    Energy Saving


    1. With semi-open function and the remote control , you can open the door opening width .so this can help to keep the temperature and humidity inside the room and to minimize the costs of the air conditioner as well

    2. 24V, 70W motor can utilize the power efficiently compared with others. Thanks to the Europan design , operator can ultilize the power efficiently.
